Pneumatic Actuator

Rotary Table/Rack & Pinion Type NMSQ

-10~60 (Not frozen)
180(NMHZL2 series 120)
Double acting•Single acting

Solid state auto switch
(NMHZAJ2 without auto switch)
Pipe Size:M3x0.5/M5x0.8

Bore size		10	20	30	50	70	100	200
Fluid		Air (non-lube)
Action		Double acting
Maximum operating pressure	With adjustment bolt	1MPa
	With internal shock absorber	0.6MPa
Minimum operating pressure		0.1MPa(High Precision:0.2MPa)
Ambient and fluid temperature		10-60°(with no freezing)
Cushion		Rubber bumper/Shock absorber
Allow Energy	With adjustment bolt	0.007J	0.025J	0.048J	0.081J	0.24J	0.32J	0.56J
	With internal shock absorber	0.039J	0.116J		0.294J	1.1J	1.6J	2.9J
Angle adjustment range		0~190°
Maximum rotation		190°
Speed Angle	Adjustment screw	0.2-1.0s/90°				0.2-1.5s/90	0.2-2.0s/90°	0.2-2.5s/90°
	Hydraulic buffer	0.2-0.7s/90°				0.2~1.0s/90°
Cylinder bore size		015	Φ18	Φ21	Φ25	028	032	Φ40
Port size	End ports	M5x0.8		Rc1/8
	Side ports	M5x0.8

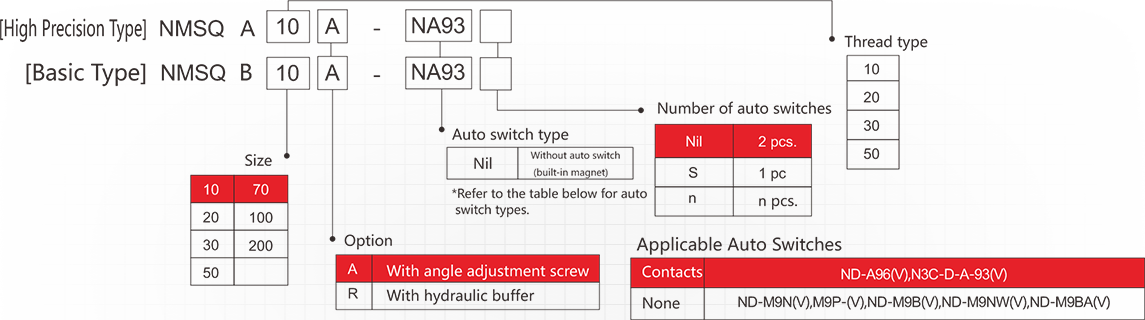

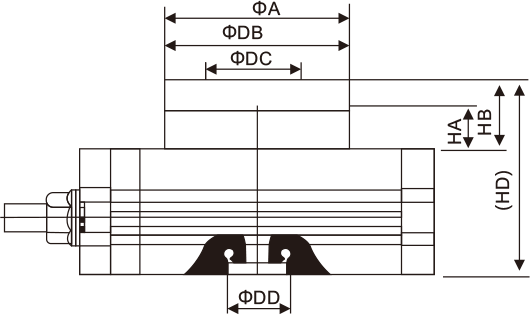

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

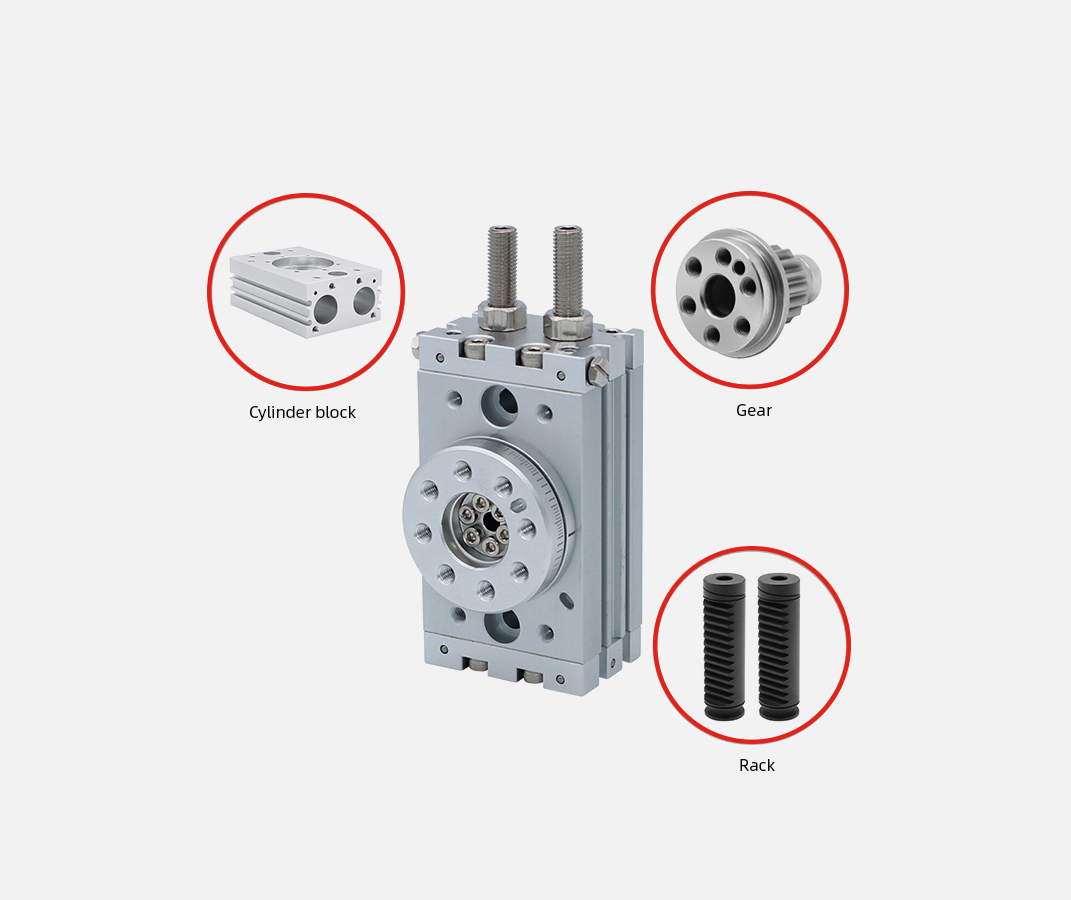

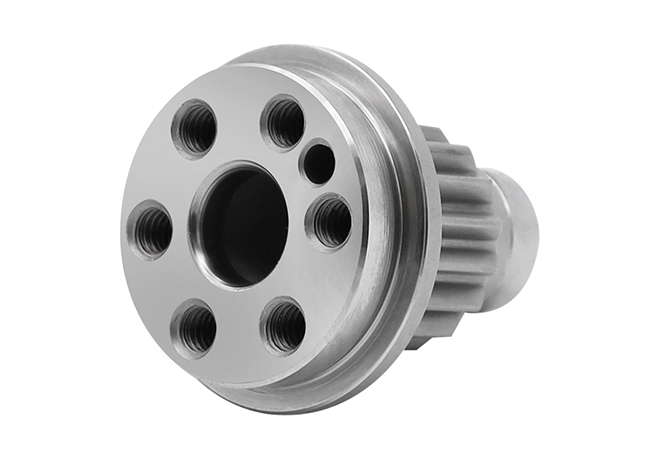

Pneumatic Actuator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

Pneumatic Actuator

PRODUCT ADVANTAGE

Standard specifications STANDARDAdmiitratorNormal

Admiitrator232020-12-04 t01:57:00 Z2020-12-04 t01:57:00 Z1704013147012.00 CleafalefalefalefaleEN -USZH-CNX-NONE Cylinder

diameter 1020305070100200 fluid air (no oil) action mode double action maximum use pressure belt Angle adjustment screw 1MPa

with hydraulic buffer 0.6MPa minimum use pressure 0.1MPa(high precision 10 for 0.2MPa) environment and fluid temperature 0~60.... ..

Durable: The use of Mitsubishi seal ring, durable

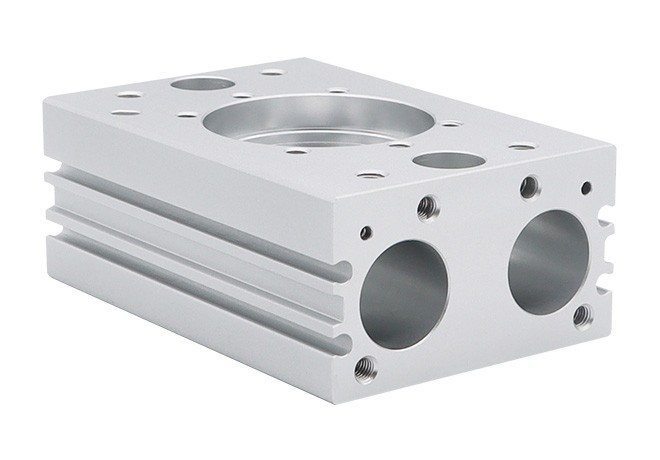

Material: Aluminum alloy cylinder block, rust and corrosion resistance

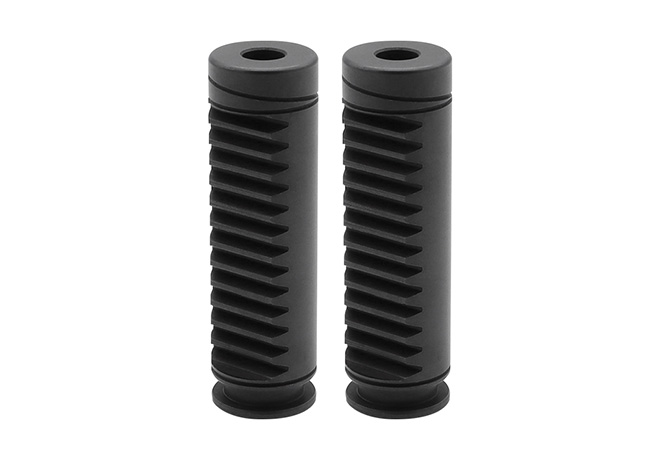

Thickening: piston rod, 304 stainless steel material, high hardness

Rotary Table/Rack & Pinion Type NMSQ

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
