Pneumatic Actuator

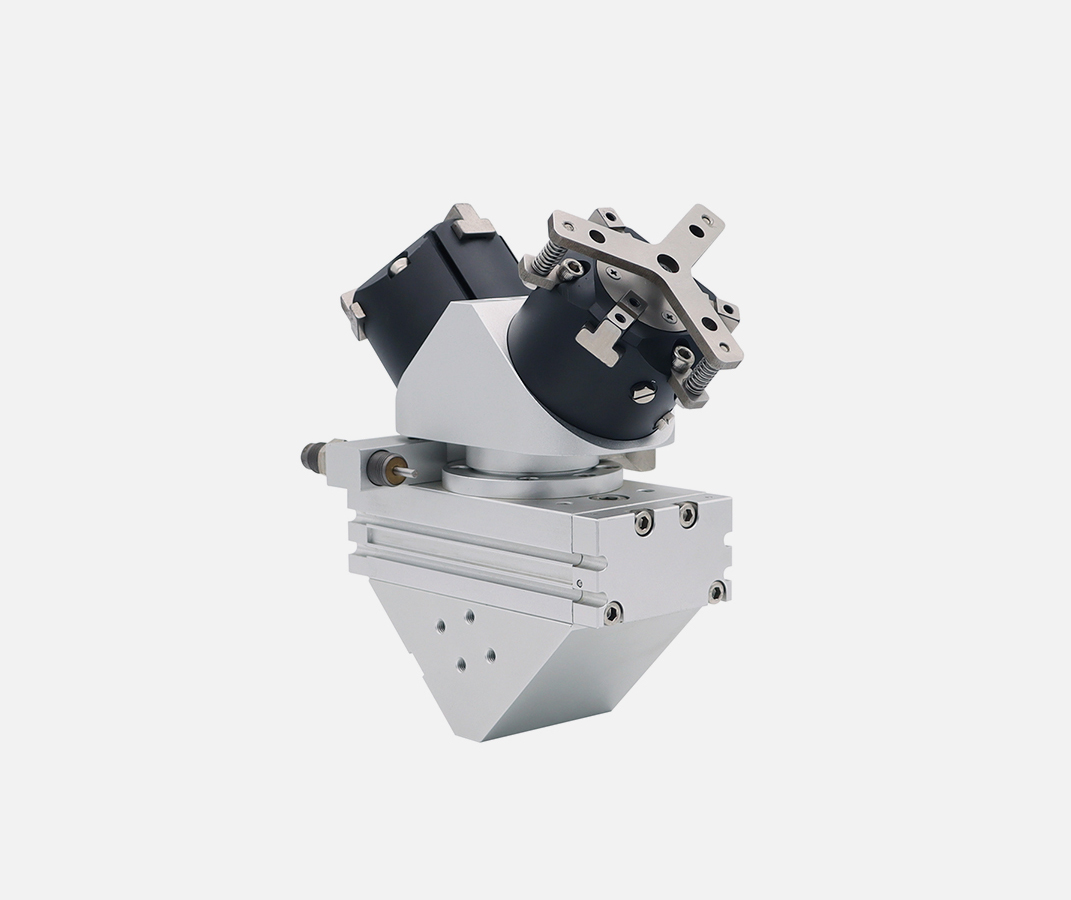

180° Reversing clamping cylinder NRML

Rotary cylinder:Double Acting
Pressure range Kgf/cm2(_Kpa):1.5-7（150-170）
Max. operating pressure Kgf/cm2(_Kpa):6.5（650）

Ambient and fluid temperature ℃:0-60
Rotary cylinder:Double Actin
Shock absorber

Item Bore size		20			50		100
Applicable gripper		NMHS3-25D-RML	NMHS3-32D-RML	NMHS3-40D-RML	NMHS3-50D-RML	NMHS3-63D-RML	NMHS3-80D-RML	NMHS3-100D-RML
Operation	Rotary cylinder	Double Acting
	Gripper	Double Acting
Gripping force	OPEN(N)	30	70	131	282	446	578	946
	CLOSE(N)	35	82	149	314	496	641	1009
Fluid		Air
Pressure range Kgf/cm2(_Kpa)		1.5-7（150-170）
Max. operating pressure Kgf/cm2(_Kpa)		6.5（650）
Ambient and fluid temperature ℃		0-60
Lubrication		Free
Gripping force		M5			PT 1/8“
		M5					PT 1/8“
Cushion type to rotary cylinder		Shock absorber

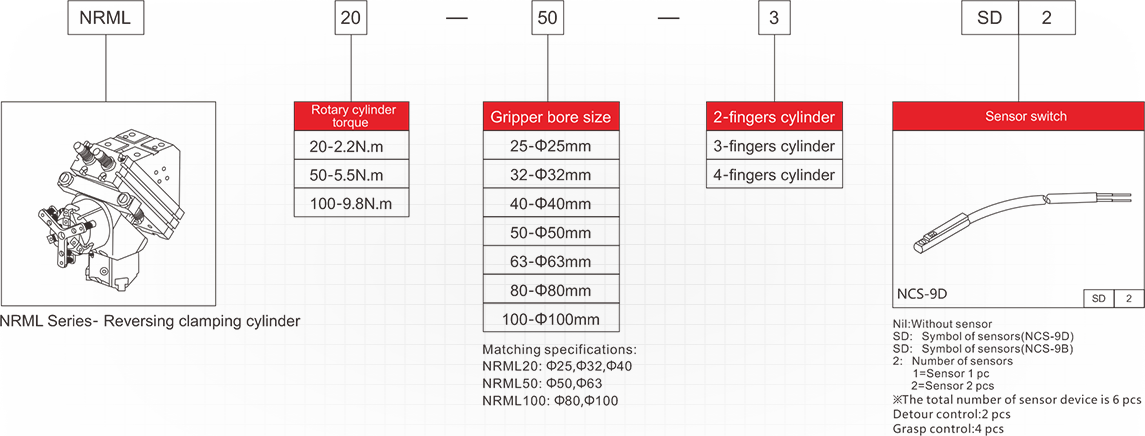

MODEL INDICATION
