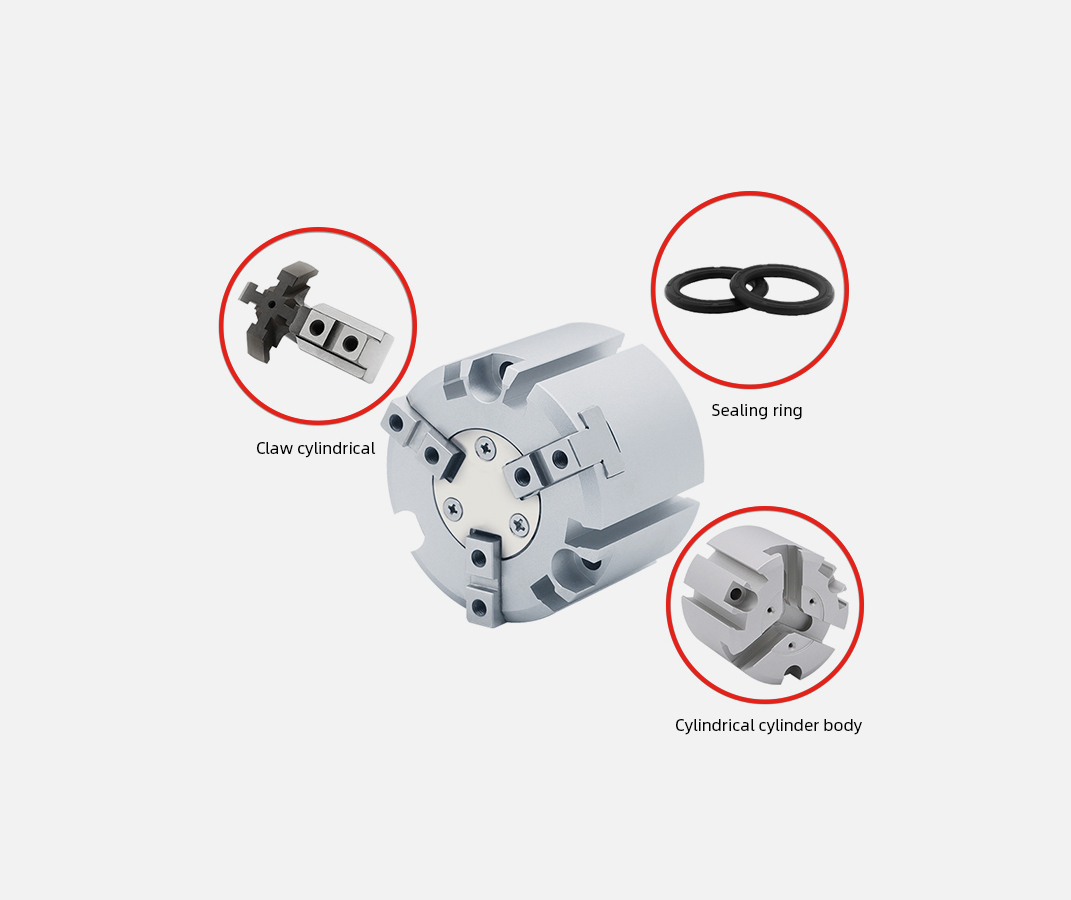

Parallel Type Air NMHS3,Parallel Type Air NMHS3 Manufacturer & Supplier

Bore size		NMHS3-16D	NMHS3-20D	NMHS3-25D	NMHS3-32D	NMHS3-40D	NMHS3-50D	NMHS3-63D	NMHS3-80D	NMHS3-100D	NMHS3-125D
Bore size(mm)		16	20	25	32	40	50	63	80	100	125
Fluid		Air
Operating pressure(MPa)		0.2~0.6MPa			0.1~0.6MPa
Ambient and fluid temperature(℃)		-10~60℃(Not frozen)
Repeatability(mm)		±0.01mm
Max. operating frequency(c.p.m)		120c.p.m			60c.p.m				30c.p.m
Lubrication		Not required
Action		Double acting
Effective gripping Note) force (N) at 0.5 MPa	Externalgrip	14	25	42	74	118	187	335	500	750	1270
Effective gripping Note) force (N) at 0.5 MPa	Internalgrip	16	28	47	82	130	204	359	525	780	1320
Opening/Closing stroke (Both sides)(mm)		4	4	6	8	8	12	16	20	24	32

(mm) Weight(g)		M3x0.5	M5x0.8						1/8	1/4	3/8
