Pneumatic Actuator

Parallel Type Air NMHS2

Action:Double acting
Lubrication:Not required
Repeatability (mm ):± 0 .01mm

NMHS2-16D:M2 x 0.4
120c.p.m/60c.p.m
Operating pressure (MP a ):0.2~0.6MP a/0.1~0.6MP a

Bore size		NMHS2-16D	NMHS2-20D	NMHS2-25D	NMHS2-32D	NMHS2-40D	NMHS2-50D	NMHS2-63D
Bore size(mm)		16	20	25	32	40	50	63
Fluid		Air
Operating pressure(MPa)		0.2~0.6MPa			0.1~0.6MPa
Ambient and fluid temperature(℃)		-10~60℃(Not frozen)
Repeatability(mm)		±0.01mm
Max. operating frequency(c.p.m)		120c.p.m			60c.p.m
Lubrication		Not required
Action		Double acting
Effective gripping Note) force (N) at 0.5 MPa	Externalgrip	21	37	63	111	177	280	502
Effective gripping Note) force (N) at 0.5 MPa	Internalgrip	23	42	71	123	195	306	537
Opening/Closing stroke (Both sides)(mm)		4	4	6	8	8	12	16

(mm) Weight(g)		58	96	134	265	345	515	952

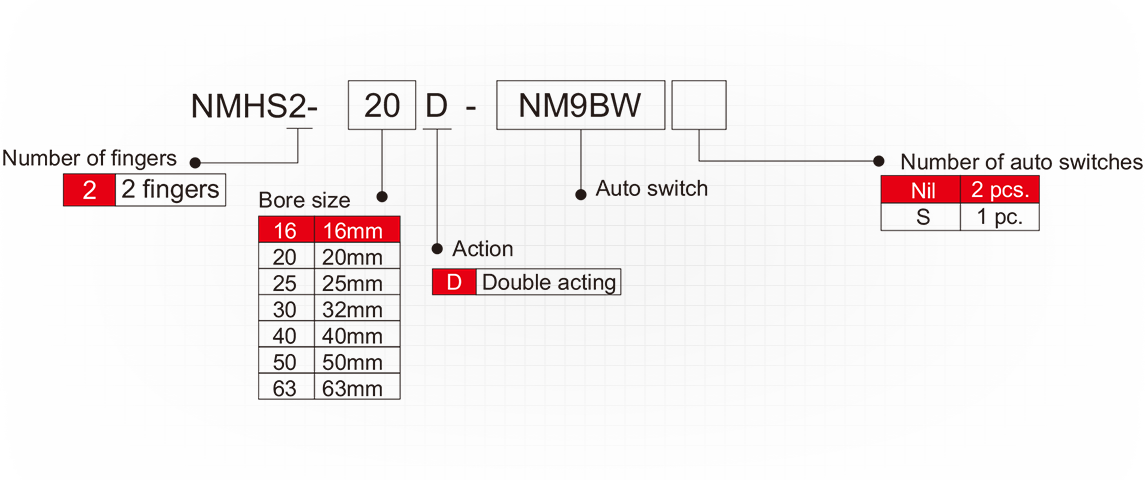

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

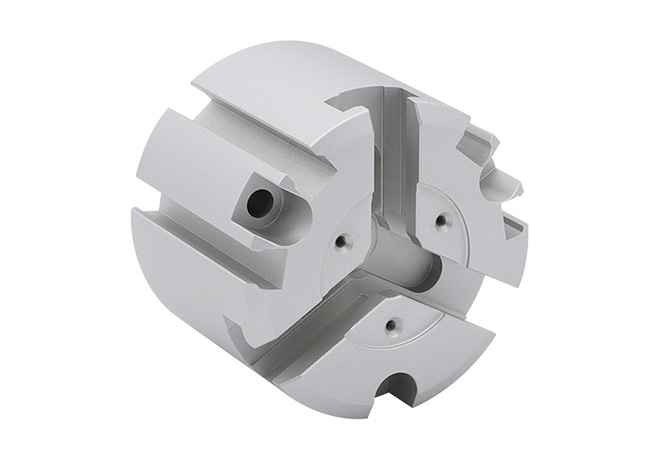

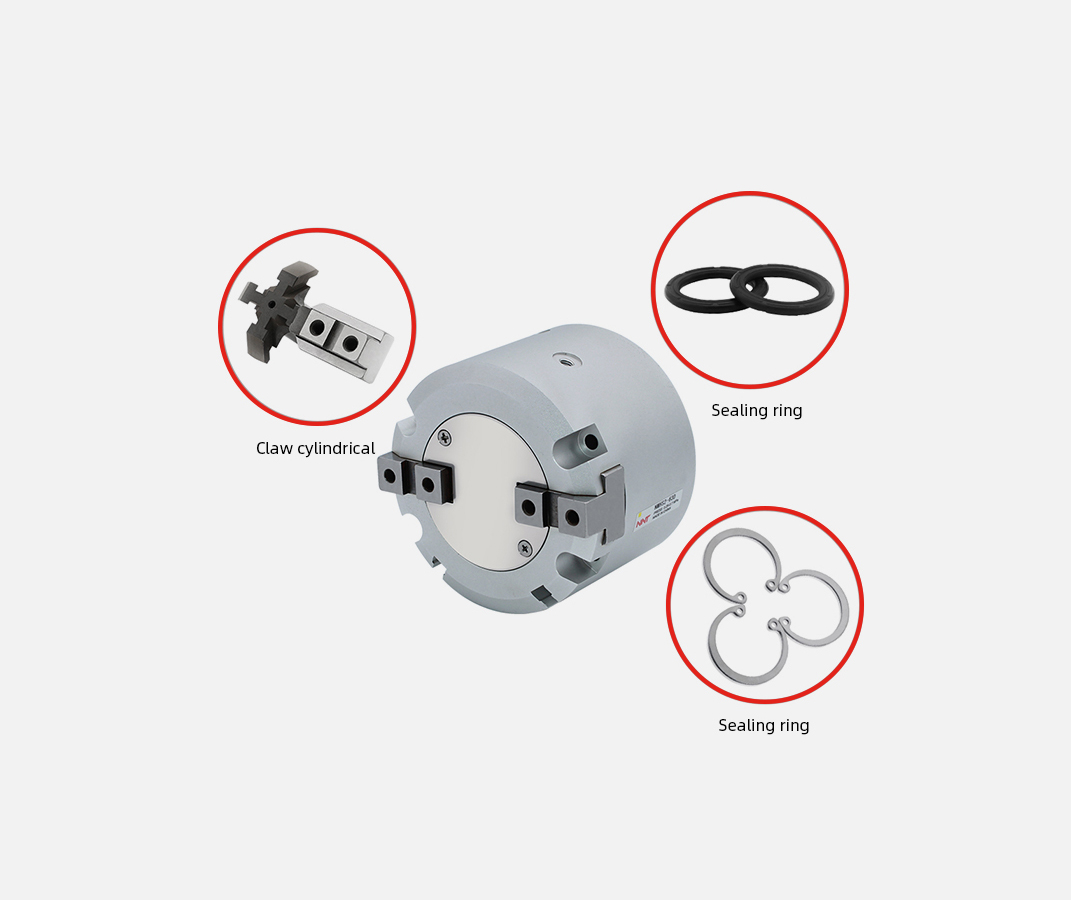

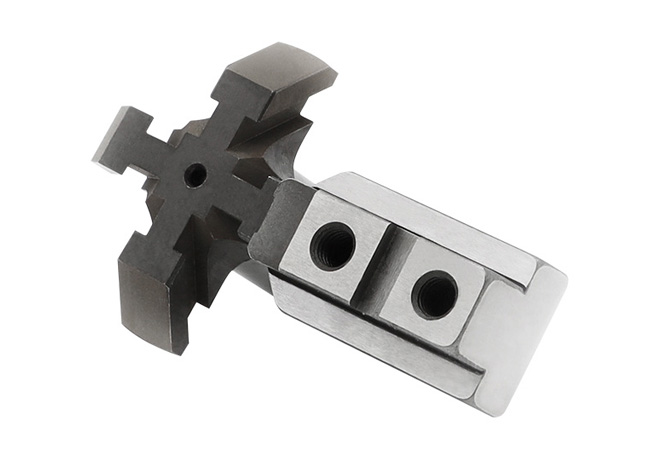

Pneumatic Actuator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

Pneumatic Actuator

PRODUCT ADVANTAGE

SMC air claw according to the style can usually be divided into Y type clamping finger and peaceful clamping finger, cylinder diameter is divided into 16mm, 20mm, 25mm,32mm and 40MM several, its main role is to replace people grab work, can effectively improve production efficiency and work safety.

SMC air claw series is one of the commonly used pneumatic claw devices in the industrial field.

SMC MHS4 Parallel Opening and Closing Cylinder Air Claw (4 Claws)

Values for ø16 to ø25 are with gripping point L = 20 mm, for ø32 to ø63 with gripping point L = 30 mm, and for ø80 to ø125 with gripping point L = 50 mm.

Refer to “Effective Gripping Force” data on pages 587 to 589 for the gripping force at each gripping position.

Parallel Type Air NMHS2
