Pneumatic Actuator

Wide Type Air Gripper NMHL2 (Φ10~Φ40)

Maximum Pressure：0.6
Ambient and fluid temperatures：-10~60℃
Repeatability:±0.1mm

Action:Double acting
Minimum Pressure:0.15/0.1
Pipe size:M5×0.8 /Rc1/8

Bore sizemm	10	16	20	25	32	40
Fluid	Air
Maximum Pressure	0.6
Action	Double acting
Minimum Pressure	0.15	0.1
Ambient and fluid temperatures	-10~60℃
Repeatability	±0.1
Feed oil	No oil
1 Effective gripping force [N]Note1	14	45	74	131	228	396

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

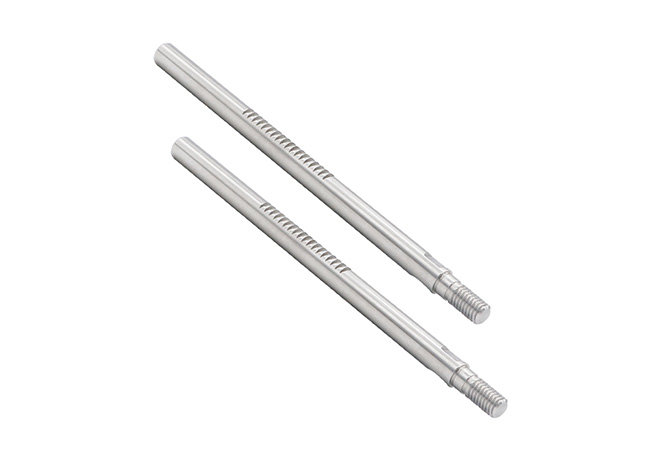

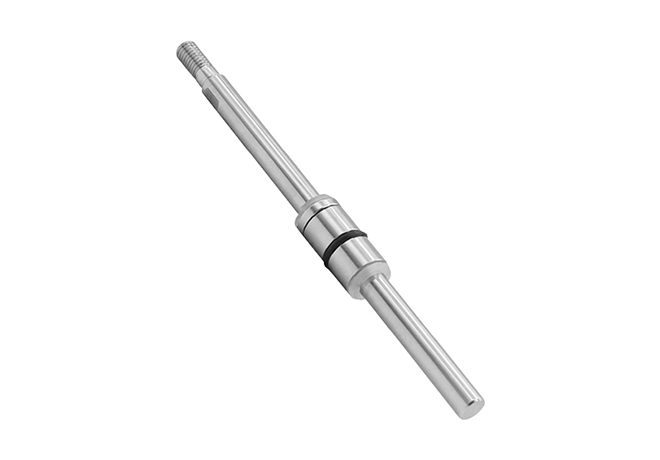

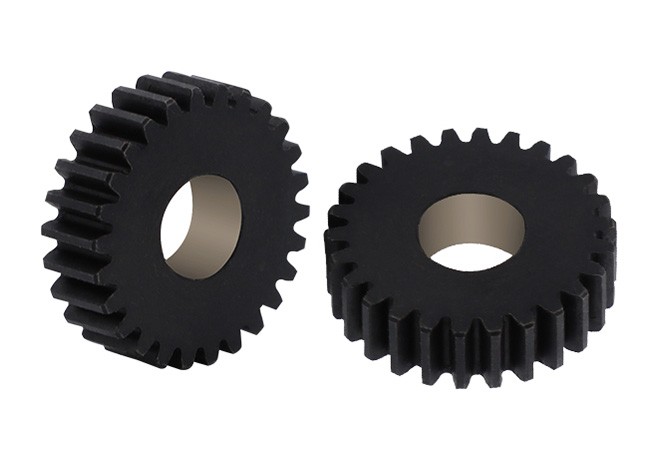

Pneumatic Actuator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

Pneumatic Actuator

PRODUCT ADVANTAGE

Weight Light Weight reduced by up to 10% : 585g →525g.

Structural changes in the main body and its interior reduce mass.

Built-in dust proof construction (standard).

Cope with dust environment (custom specification: -X85, -X86□).

One long stroke air claw can correspond to a variety of workpiece sizes.

Adopts double piston structure, compact shape and large holding force.

Small magnetic opening can be installed directly.

NNT has developed a full range of pneumatic control components such as pneumatic claw finger, rotary cylinder, electric proportional valve, precision pressure reducing valve, digital display pressure switch, magnetic switch, electric shock pressure switch, small air pressure switch and so on.

Noneng Tai - finger air claw customization manufacturers

Wide Type Air Gripper NMHL2 (Φ10~Φ40)

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
