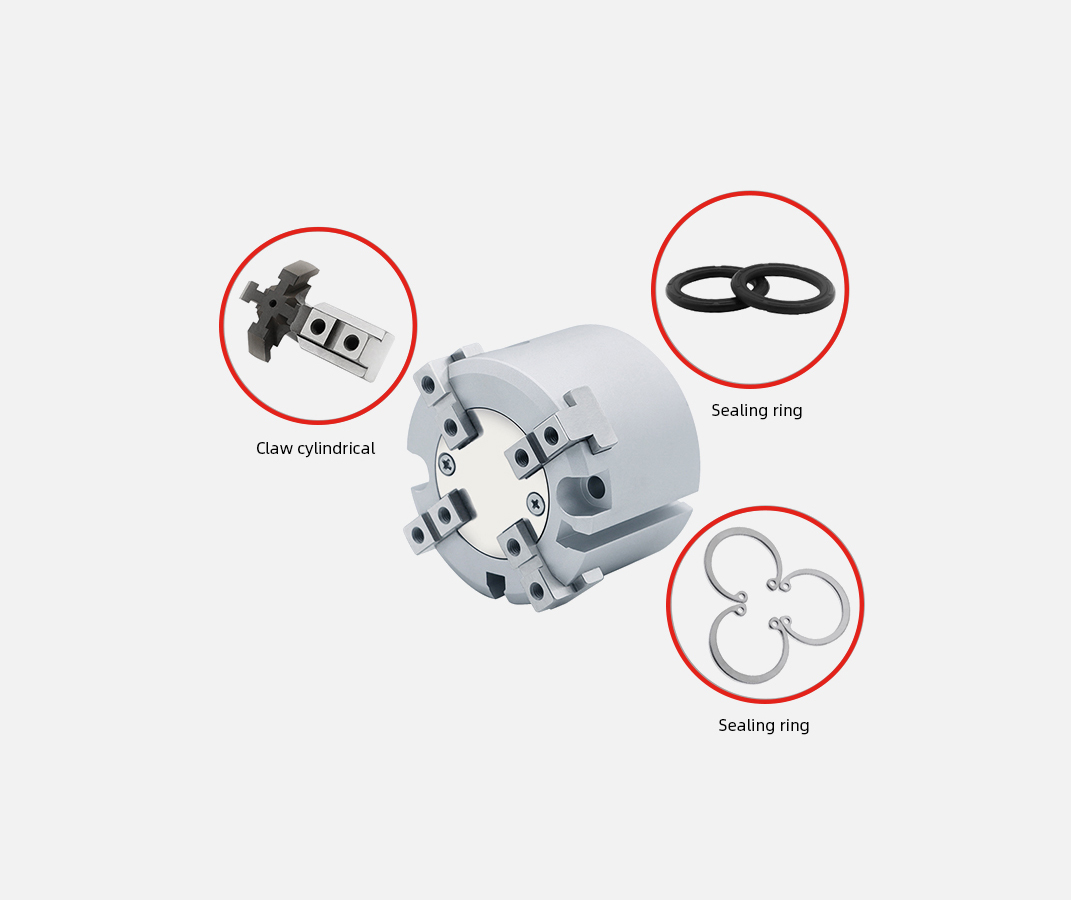

Bore size		NMHS4-16D	NMHS4-20D	NMHS4-25D	NMHS4-32D	NMHS4-40D	NMHS4-50D	NMHS4-63D
Bore size(mm)		16	20	25	32	40	50	63
Fluid		Air
Operating pressure(MPa)		0.2~0.6MPa			0.1~0.6MPa
Ambient and fluid temperature(℃)		-10~60℃(Not frozen)
Repeatability(mm)		±0.01mm
Max. operating frequency(c.p.m)		120c.p.m			60c.p.m
Lubrication		Not required
Action		Double acting
Effective gripping Note) force (N) at 0.5 MPa	Externalgrip	10	19	31	55	88	140	251
Effective gripping Note) force (N) at 0.5 MPa	Internalgrip	12	21	35	61	97	153	268
Opening/Closing stroke (mm) (dia.)		4	4	6	8	8	12	16

(mm) Weight(g)		66	110	154	300	390	590	1095

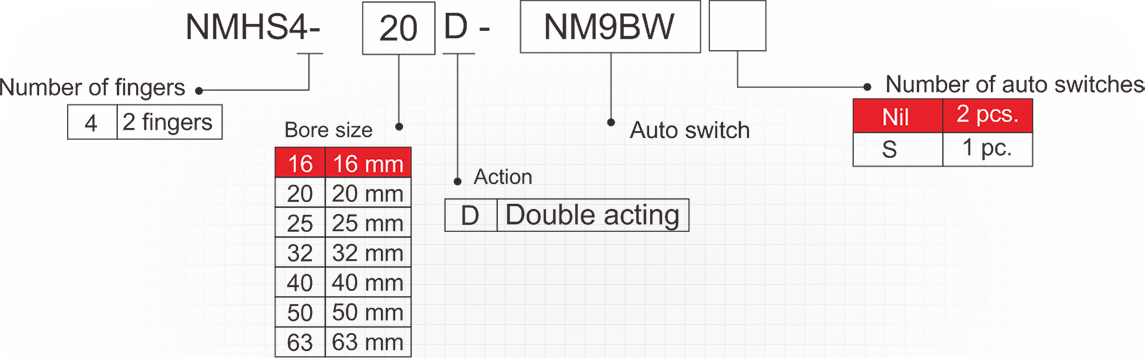

MODEL INDICATION
