Pneumatic Actuator

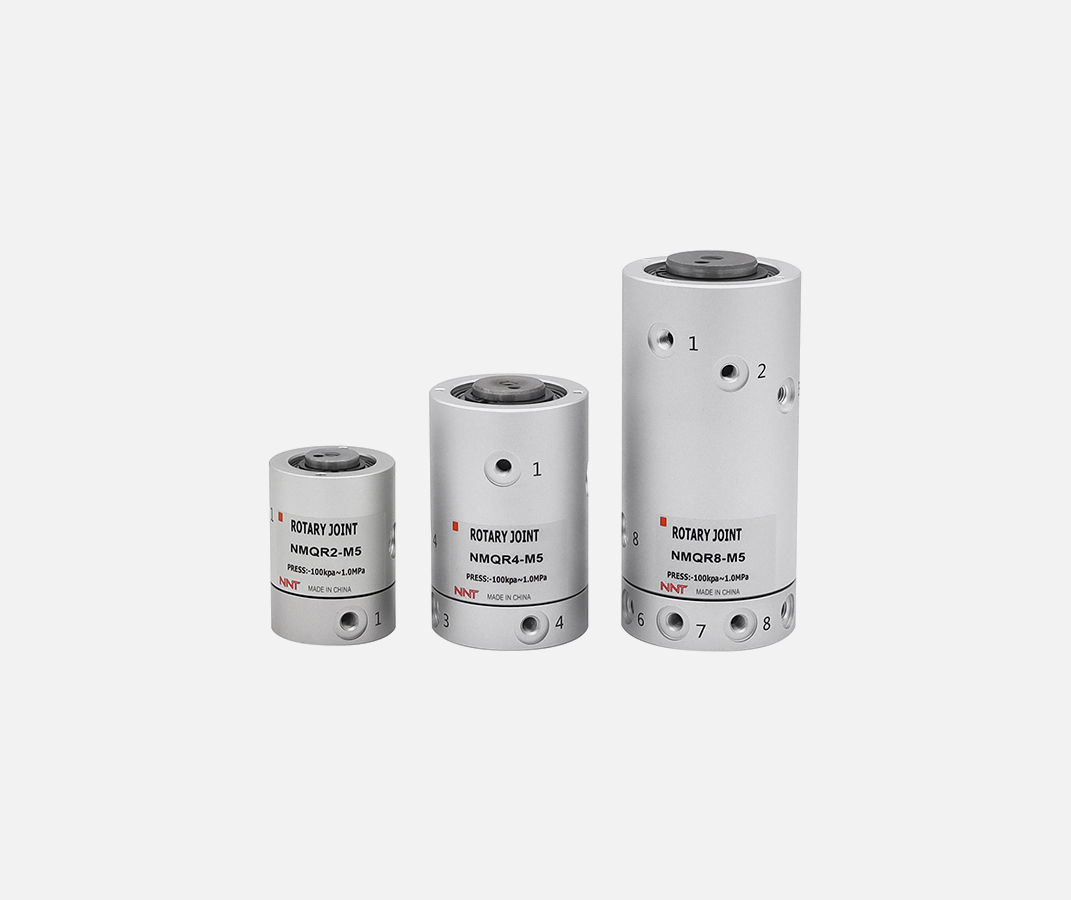

Low Torque Rotary Joint NMQR

0.003 - 0.005N.m or less
3000 - 200min (r.p.m.) or les
1N - 5N or less

Lubrication:Not required
Min. operating pressure:-100kPa
Max. operating pressure:1.0MPa

Mode	NMQR1-M5	NMQR2-M5	NMQR4-M5	NMQR8-M5	NMQR12-M5	NMQR16-M5
Number of circuits (Number of ports)	1	2	4	8	12	16
Fluid	Air
Seal structure	Metal seal
Guide structure	Bearing supported	Bearing supported at both ends
Effective gripping Note) force (N) at 0.5 MPa	8Male R1/8	M5 × 0.8
	Female M5 x 0.8
Flow ratecharacteristics	C[dm /(s .bar)]		b		Cv
	0.50		0.40		0.17
Lubrication	Not required
Min. operating pressure	-100kPa
Max. operating pressure	1.0MPa
Ambient temperature^{Note 1)} and operating fluid temperature	-10 ~ 80 ℃
Maximum start-up rotation torque^{Note 2)}	0.003 N.m or less	0.003 N.m or less	0.005 N.m or less	0.10 N·m or less	0.20 N·m or less	0.50 N·m or less
Allowable rotation number^{Note 5)}	3000 min (r.p.m.) or less ^{Note 3)}	2000 min (r.p.m.) or less	1500 min (r.p.m.) or less	900 min (r.p.m.) or less	600 min (r.p.m.) or less	200 min (r.p.m.) or less
Allowable radial load (allowable coupling axis reaction)^{Note 4)}	1N or less	15N or less	30N or less	40N or less	50N or less	50N or less
Weight	0.025kg	0.16kg	0.39kg	0.76kg	1.26kg	2.80kg

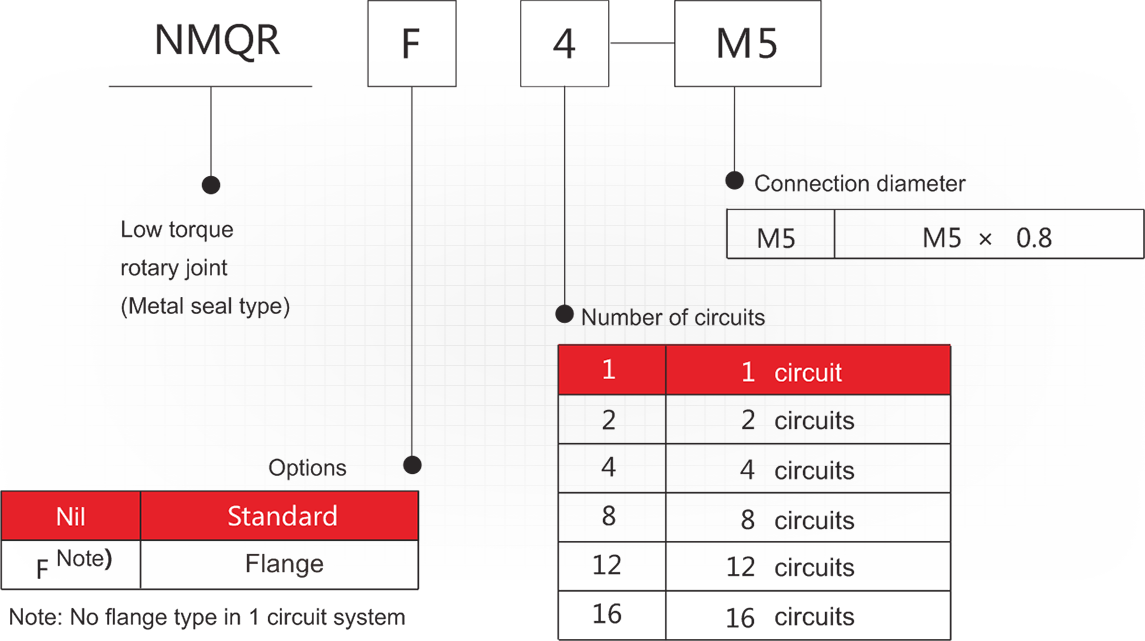

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

Pneumatic Actuator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

Pneumatic Actuator

PRODUCT ADVANTAGE

The temperature 80°C includes temperature rise during rotation.

The start-up torque does not change with the supply pressure or with non-use (remains within the maximum start-up rotation torque), but it does change with the rotation number. (Refer to page 450).

A rotary joint refers to a pipe connecting device, and the connected pipe can rotate relative

Can be used to transfer gas, liquid, oil and other media

Compact design structure, flange connection, effective integration into customer equipment

1) The temperature 80°C includes temperature rise during rotation.
2) The start-up torque does not change with the supply pressure or with non-use (remains within the maximum start-up rotation torque), but it does change with the rotation number. (Refer to page 450).
3) If using at a speed above 600 min-1 (r.p.m.), ensure rotation is in the direction in which the joint is fastened.
4) Rubber / resin couplings are recommended due to their excellent absorption of off center, shocks, and vibrations.

Low Torque Rotary Joint NMQR
