Digital Pressure Sensor NISE/ZSE30A(F) Pneumatic Pressure Display Sensor NNT Pneumatic

Model		NZSE30A (Vacuum pressure)	NZSE30AF (Compound pressure)	NISE30A (Positive pressure)
Pressure range		0.0~-101.0kPa	－100.0~100.0kPa	－0.100~1.000MPa
Setting pressure range		10.0~-105.0kPa	－105.0~105.0kPa	－0.105~1.050MPa
Withstand pressure		500kPa	500kPa	1.5MPa
Minimum unit setting		0.1kPa	0.1kPa	0.001MPa
Applicable flfluid		Air, Non-corrosive gas, Non-flflammable gas
Power supply voltage		DC12~24V±10% ， Ripple (p-p) 10% or less (with power supply polarity protection)
Current consumption		40mA or less
Switch output		NPN or PNP open collector 1 output, NPN or PNP open collector 2 outputs
Maximum load current		80mA
Maximum applied voltage		28 V (at NPN output)
Residual voltage		1 V or less (with load current of 80 mA)
Response time		2.5 ms or less (with anti-chattering function: 20, 100, 500, 1000, 2000 ms)
Short circuit protection		Yes
Repeatability		±0.2%F.S.±1digit
Hysteresis	Hysteresis mode	Variable (0 or above)
	Window comparator mode
Voltage output	Output voltage (Rated pressure range)	1~5V±2.5%F.S.		0.6~5V±2.5%F.S.
	Linearity	±1%F.S.
	Output impedance	Approx. 1 kΩ
Current output	Output voltage (Rated pressure range)	4~20mA±2.5%F.S.		2.4~20mA±2.5%F.S.
	Linearity	±1%F.S.
	Load impedance	Maximum load impedance: Power supply voltage 12 V: 300 Ω, Power supply voltage 24 V: 600 Ω Minimum load impedance: 50 Ω
Display		4-digit, 7-segment, 2-color LCD (Red/Green)
Display accuracy		±2% F.S. ±1 digit (Ambient temperature of 25 ±3°C)
Indicator light		Lights up when switch output is turned ON. OUT1: Green, OUT2: Red
Environment	Enclosure	IP40
	Operating temperature range	Operating: 0 to 50°C, Stored: –10 to 60°C (No freezing or condensation)
	Operating humidity range	Operating/Stored: 35 to 85% RH (No condensation)
	Withstand voltage	AC1000V for 1 minute between terminals and housing
	Insulation resistance	50 MΩ or more (DC500V measured via megohmmeter) between terminals and housing
Temperature characteristics		±2%F.S. (25°C reference)
Lead wire with connector		Oilproof heavy-duty vinyl cable, 3 cores ø3.5, 2 m 4 cores Conductor area: 0.15 mm2 (AWG26), Insulator O.D.: 1.0 mm

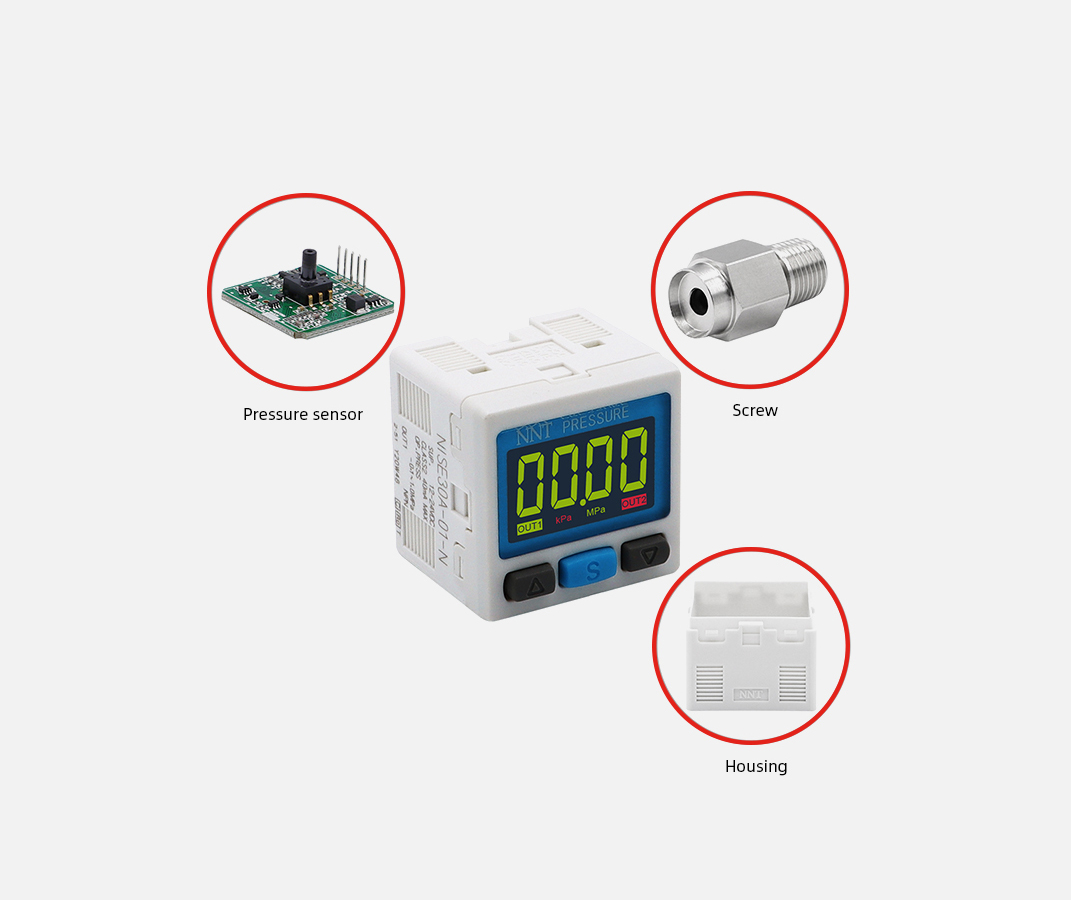

Digital Pressure Sensor Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

Digital Pressure Sensor

PRODUCT ADVANTAGE

The digital pressure sensor is an electronic device that measures and displays pressure readings as numerical values.

It is commonly used in various industrial and commercial applications, such as automotive, medical, and process control, to provide accurate and reliable pressure measurements.

The digital pressure sensor works by converting pressure signals into digital signals that can be processed by a microprocessor or computer. This allows for real-time monitoring and control of pressure levels, making it easier to detect and respond to changes in pressure.

Digital pressure sensors come in different types, including absolute, gauge, and differential sensors, and can have different measurement ranges and accuracy levels.

Digital pressure sensor measures pressure and converts the signal to a digital value for real-time monitoring and control in various applications.
NNT pneumatic component. We have the mature craft and the production line, the corrosion resistant and robust design along with a wide range of options makes it ideal for OEM.
Automatic preset function copy up to 10 units
Password lock setting, Response time setting, Resolution setting

Digital Pressure Sensor NISE/ZSE30A(F)

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
