Digital Pressure Sensor 40A(F),Digital Pressure Sensor 40A(F) Manufacturer & Supplier

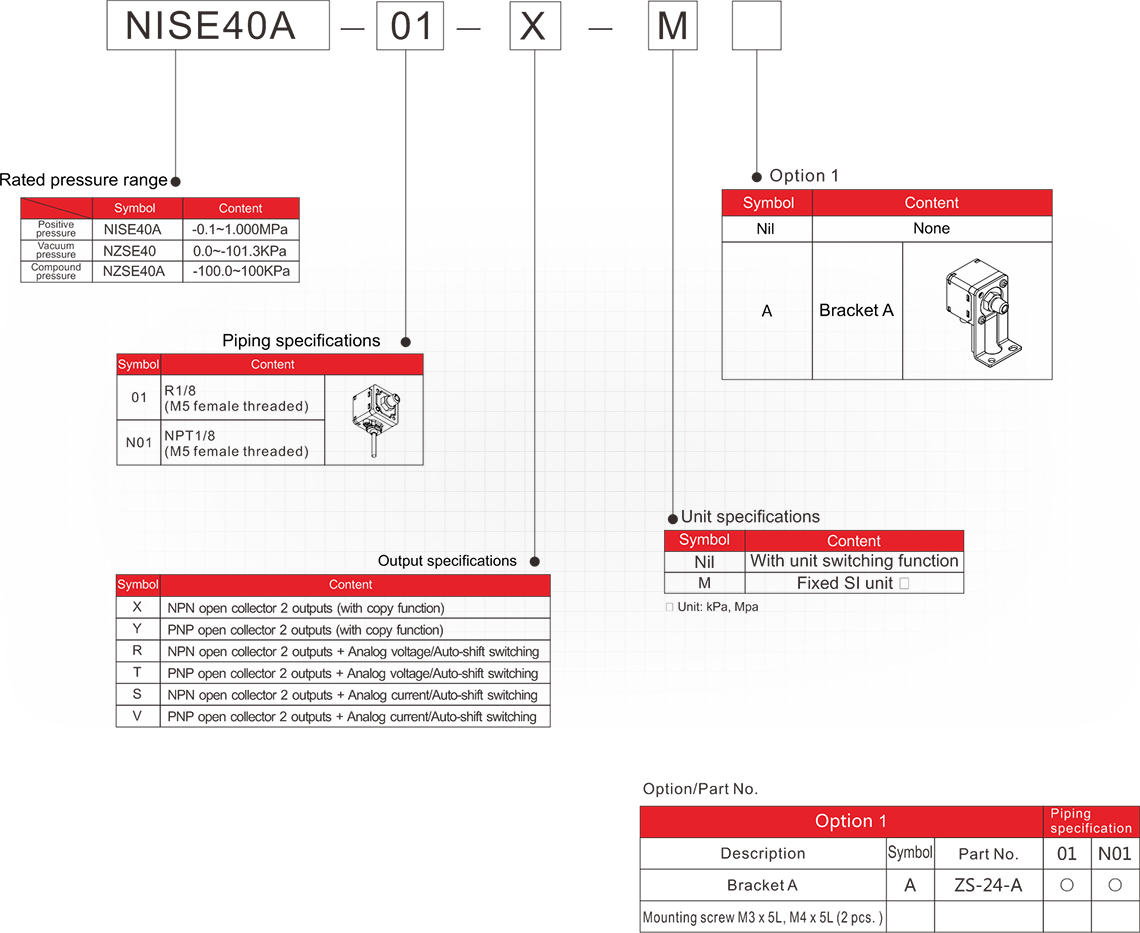

Model		NISE80	NISE80H	NISE80	NISE80F
Pressure range		0.0~-101.0kPa	0.1~2MPa	0~101KPa	-100~100KPa
Setting pressure range		-0.1~1.1MPa	-0.1~2.2MPa	10~-111KPa	-110~110KPa
Withstand pressure		2MPa	4MPa	500kPa	500kPa
Wetted parts material		Pressure sensor: Stainless steel 630, Fitting: Stainless steel 304
Port size		Rc1/8(Piping direction: Rear/Bottom)
Power supply voltage		12 to 24 VDC ±10%, Ripple (p-p) 10% or less (with power supply polarity protection)
Current consumption		40mA or less
Switch output		NPN 1 output, NPN 2 outputs, PNP 1 output, PNP 2 outputs
Maximum load current		80mA
Maximum applied voltage		28 V (at NPN output)
Residual voltage		1 V or less (with load current of 80 mA)
Response time		2.5 ms or less (with anti-chattering function: 20, 100, 500, 1000, 2000 ms)
Short circuit protection		Yes
Repeatability		±0.2%F.S.±1digit
Hysteresis	Hysteresis mode	Variable (0 or above)
	Window comparator mode
Voltage output	Output voltage (Rated pressure range)	0.6~5V±2.5%F.S.		0.8~5V±2.5%F.S.	1~5V±2.5%F.S.
	Linearity	0.6~5.4V
	Output impedance	Approx. 1 kΩ
Current output	Output voltage (Rated pressure range)	2.4~20mA±2.5%F.S.		3.2~20mA±2.5%F.S.	4~20mA±2.5%F.S.
	Linearity	Maximum load impedance: 300 Ω (Power supply voltage 12 V) 600 Ω (Power supply voltage 24 V) Minimum load impedance: 50 Ω
	Load impedance	2.4~21.6mA
Display		3 1/2-digit, 7-segment, 2-color LCD (Red/Green)
Display accuracy		±2% F.S. ±1 digit (Ambient temperature of 25 ±3°C)
Indicator light		Lights up when switch output is turned ON. OUT1: Green, OUT2: Red
Environment	Enclosure	IP65
	Operating temperature range	Operating: 0 to 50°C, Stored: –10 to 60°C (No freezing or condensation)
	Operating humidity range	Operating/Stored: 35 to 85% RH (No condensation)
	Withstand voltage	250 VAC for 1 minute between terminals and housing
	Insulation resistance	2 MΩ or more (50 VDC measured via megohmmeter) between terminals and housing
		100M / S 2 XYZ 3 times in each direction
		10 ~ 150Hz, total amplitude 1.5mmxyz, 2 hours in each direction
Temperature characteristics		±3% F.S. (25°C reference, within operating temperature range)
Lead wire with connector		Oilproof heavy-duty vinyl cable, 3 cores (N.P)4 cores (A.B)5 cores (R.T.S.V)ø3.5, 2 mConductor area: 0.15 mm2 (AWG26)Insulator O.D.: 0.95 mm

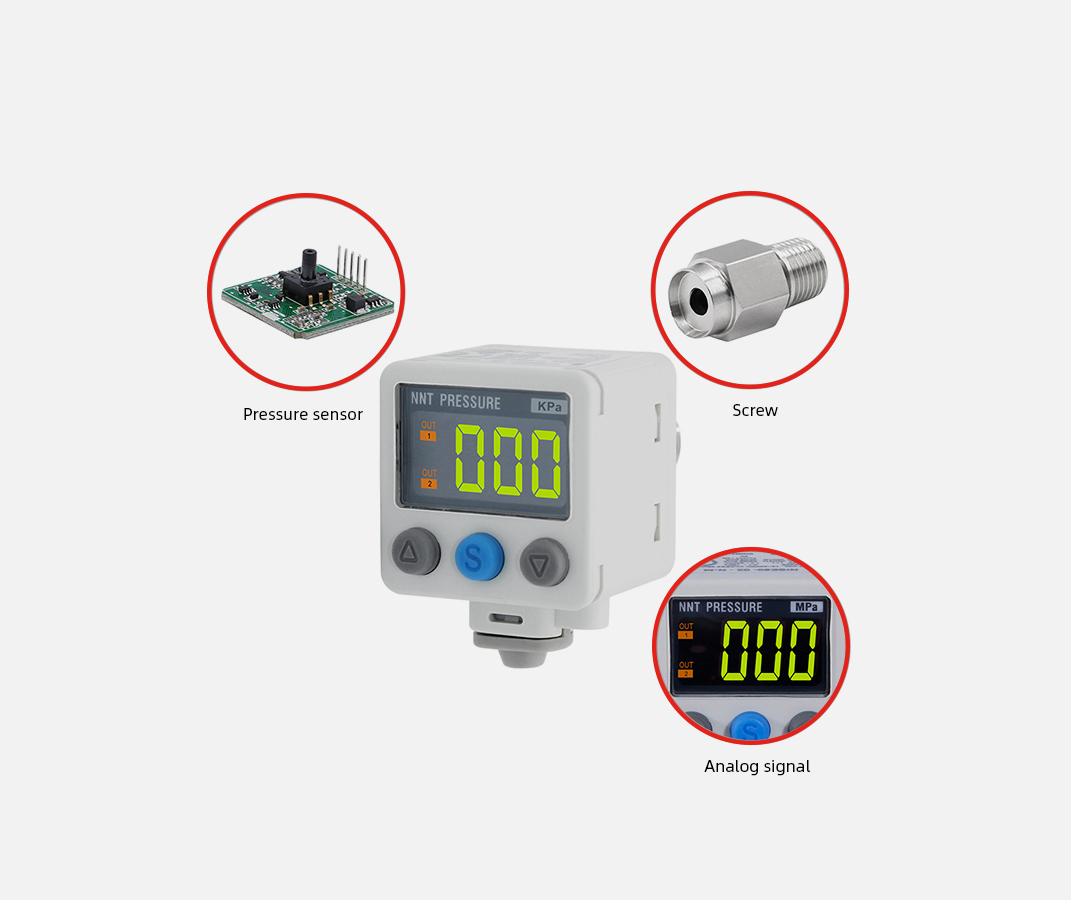

Digital Pressure Sensor

PRODUCT ADVANTAGE

The main functions of digital pressure switches are simple operation, vibration resistance, high control accuracy, and long service life.

NNT pneumatic component. We have the mature craft and the production line, the corrosion resistant and robust design along with a wide range of options makes it ideal for OEM.

Automatic preset function copy up to 10 units

Password lock setting, Response time setting, Resolution setting

Digital display pressure switch, also known as intelligent pressure switch, is a collection of pressure measurement, display, control and one of the intelligent high-precision pressure control equipment.

The pressure switch has the function of delay control, three display units can be switched arbitrarily, error zero clearing and other functions.
