Precision Regulator

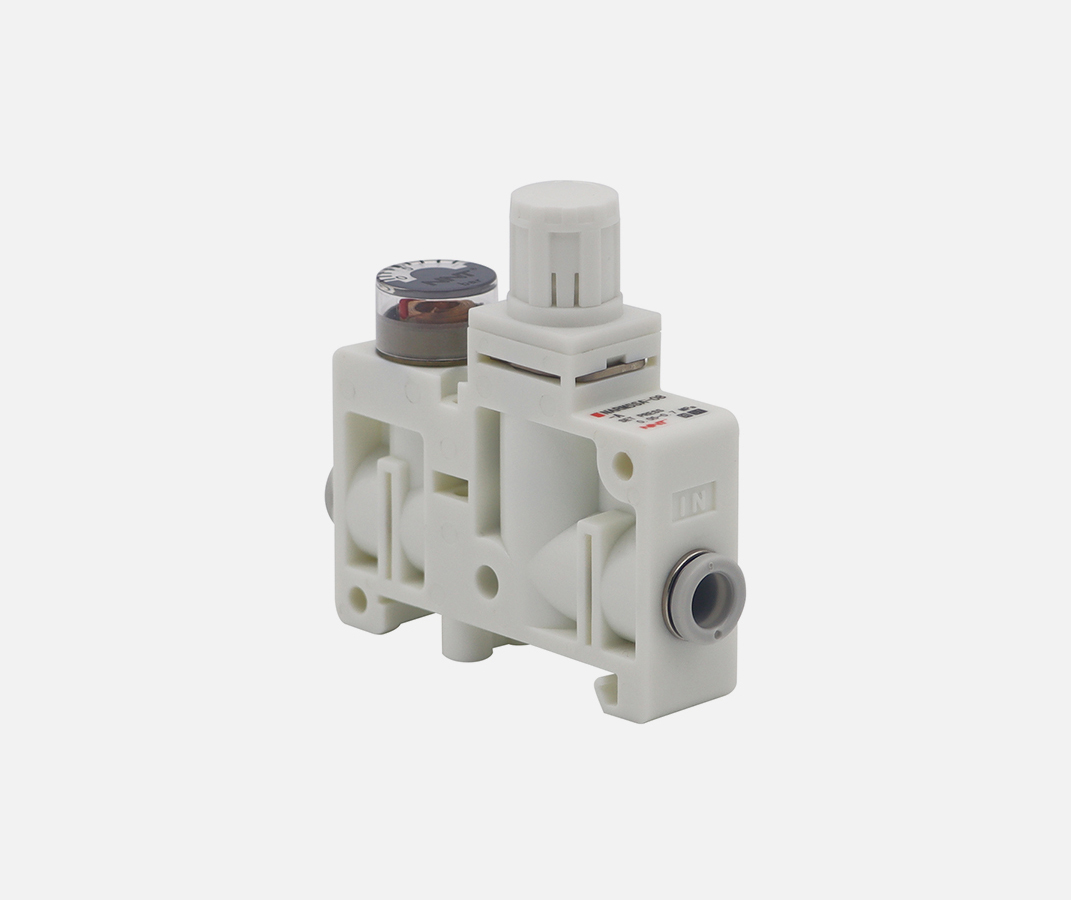

Precision Regulator ARM5S

Note) A standard model is equipped
with a backflow function. A main
valve opens when the inlet...

Note) 0.1 MPa or greater set
pressure is required when
used in the reverse flow.

Model		NARM5S
Regulator construction		Direct acting
Working principle		Piston type
Relief mechanism	Standard	Relieving type
	Semi-standard	Non-relieving type
Backflow function		Within (Unbalanced type)
IN side tubing O.D.		ø4, ø6, ø5/32", ø1/4"
OUT side tubing O.D.		ø4, ø6, ø5/32", ø1/4"
Proof pressure		1.5 MPa
Maximum operating pressure		1.0 MPa
Set pressure range	Standard	0.05 to 0.7 MPa
	Semi-standard	0.05 to 0.35 MPa (Low pressure type)s
Fluid		Air
Ambient and fluid temperature		5 to 60°C

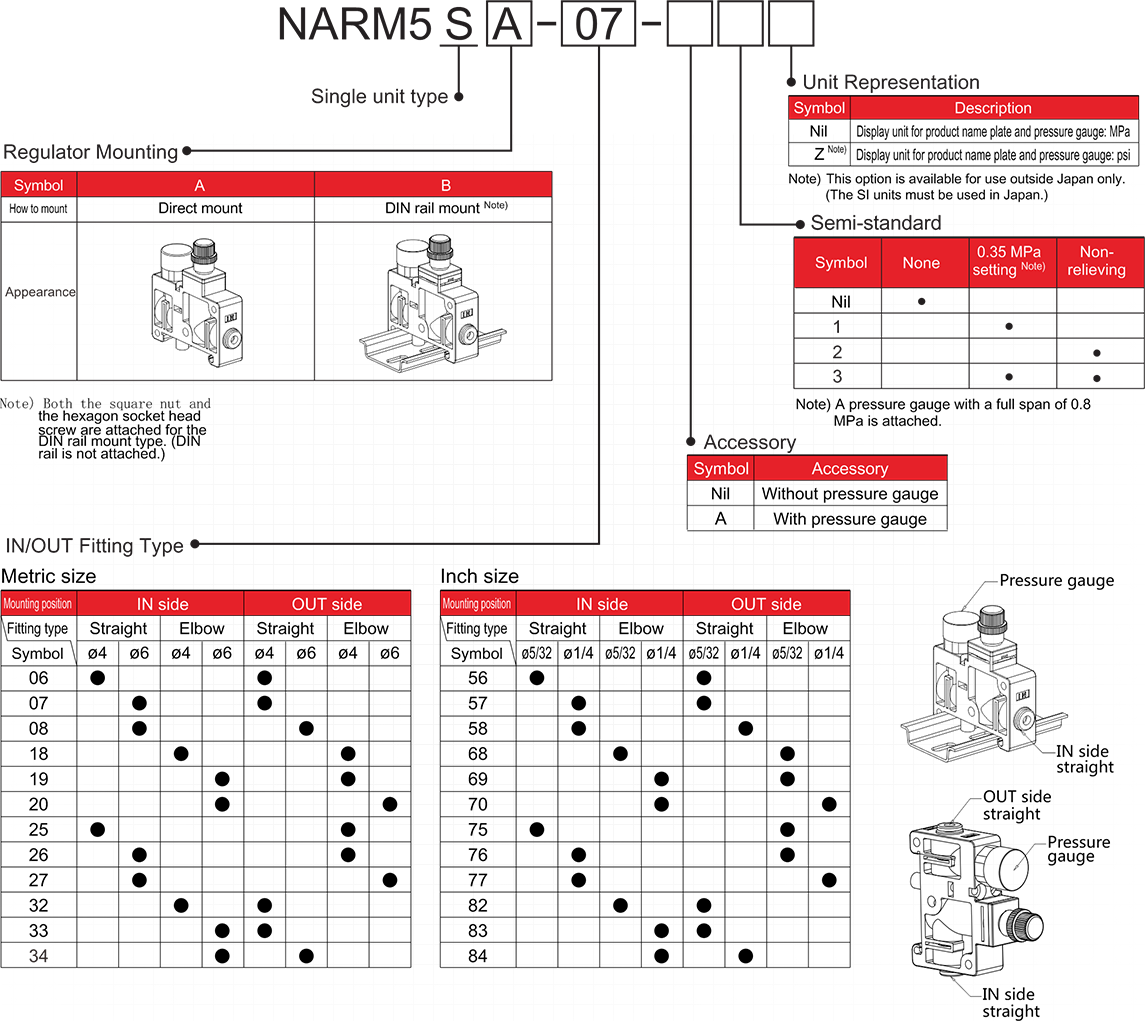

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

Precision Regulator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

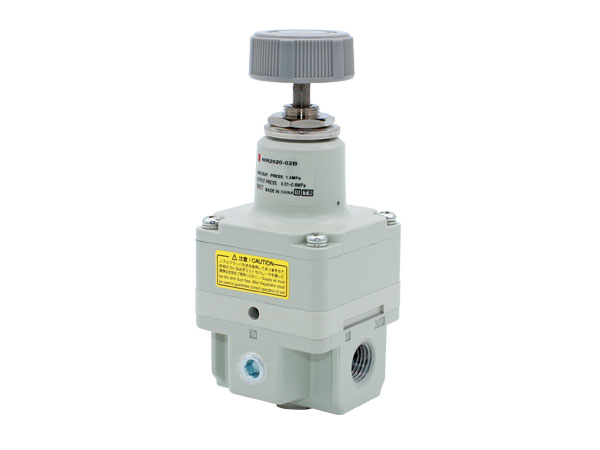

Precision Regulator

PRODUCT ADVANTAGE

Mainly engaged in Europe, the United States, Japan and other developed countries of electromechanical integration equipment, high-precision analysis and testing instruments, environmental and new energy industrial equipment and electric pneumatic tools and other industrial control automation products.

Business model and set science, industry and trade in one, by Tianjin Customs clearance, SAFE approved formal enterprises.

Use fluid: air, inert gas. Application situation Industrial automation executive control

● You can choose two installation methods, direct installation, DIN rail installation
● Corresponding countercurrent function standard
● You can choose the size of the quick change joint
● Use fluid air
● With counter-current function with counter-current function
● Ambient temperature and fluid temperature 5 ~ 60 ℃

Precision Regulator ARM5S

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
