Vacuum Generator NZK2B

View manual
Contact us
Switch Pressure range
0～-101kPa
-100～100kPa
Two way PNP
One way NPN + 4-20mA
One way PNP + 1-5V

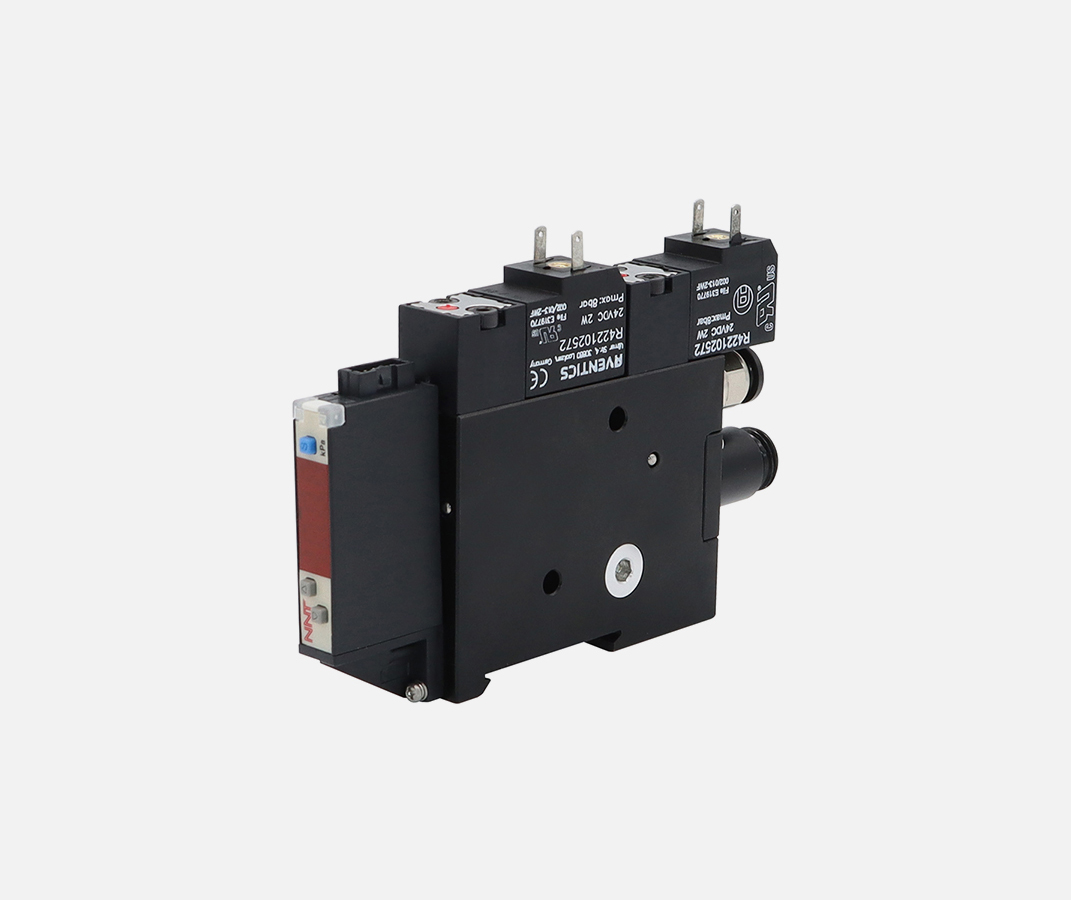

Vacuum Generator NZK2B

Standard Specifications

ModelNozzle SizeSupply PowerMax. VacuumExhaustConsumptionPressure RangeTemperatureFuild
NZK2B1.5mm0.55bar-92kPa60L/min36L/min1~7MPa-10~60℃Air

MODEL INDICATION

Standard Specifications

Other Components

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

Other Components Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part
Vacuum Generator NZK2B

Other Components

PRODUCT ADVANTAGE

Vacuum generator ZK2 compreszes air by high-speed injection of nozzle, forming jet at nozzle outlet and generating encoiling flow. Under the action of encoiling, air around nozzle outlet will be continuously sucked away, making the pressure in the adsorption chamber drop below atmospheric pressure and forming a certain vacuum degree.

So what are the common vacuum in life, for example, such as tornado, toilet suction and so on are the existence of vacuum effect.
● With 3 - stage diffuser, vacuum flow can be increased
● 250%, saving 20% of traffic
● With valve, pressure gauge or pressure switch for vacuum
● The filter element is replaceable
● Built-in vacuum filter and muffler
● Can be mounted in 3 directions (top, bottom, side)



Vacuum Generator NZK2B

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.


Other Components

Dimensions
ELECTRONIC VACUUM REGULATOR

Size(mm)
