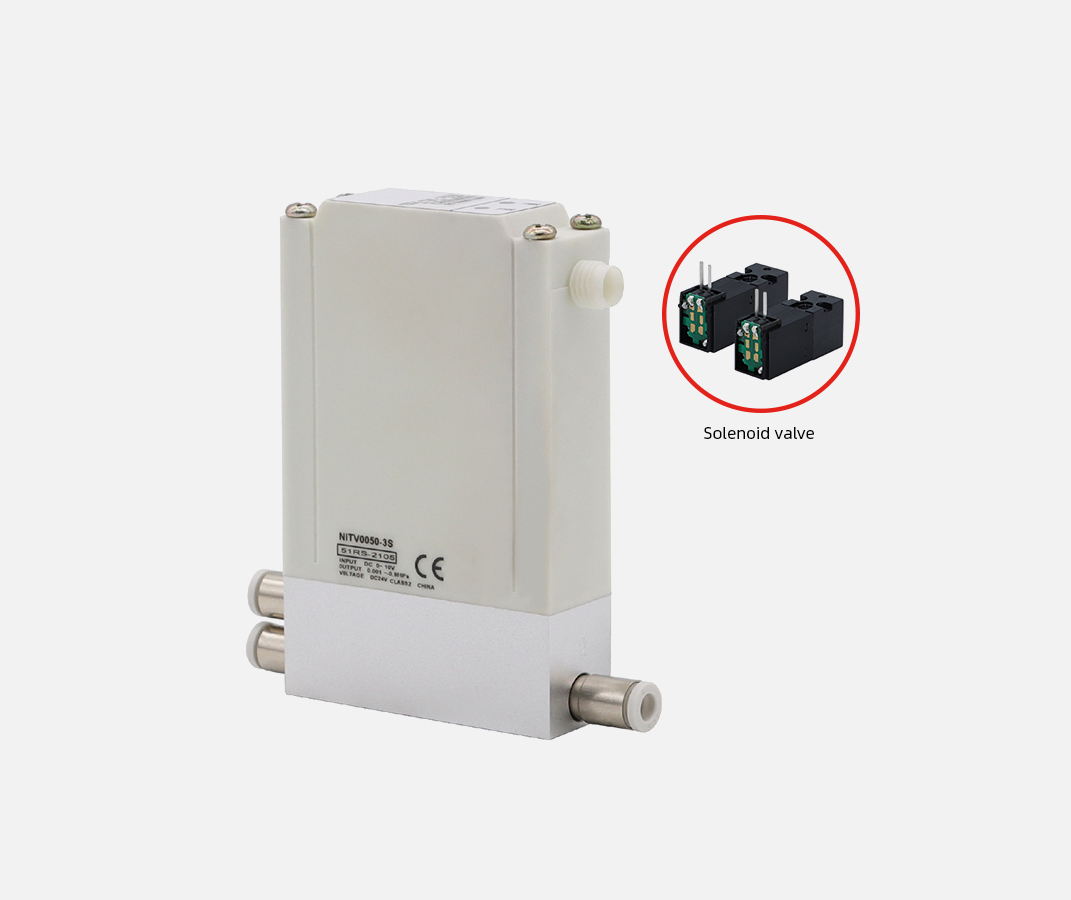

Thin proportional valve NITV0000-NNT

Model		NITV 001□	NITV 003□	NITV 005□
Minimum supply pressure		Set pressure +0.1 MPa
Maximum supply pressure		0.2MPa	1.0MPa
Set pressure range		0.001-0.1MPa	0.001-0.5MPa	0.001-0.9MPa
Power supply	Voltage	DC24V±10%，DC12~15V
	Current consumption	Power supply voltage 24 VDC type: 0.12 A or less Power supply voltage 12 to 15 VDC type: 0.18 A or less
Input signa	Voltage type	DC0-5V，DC0~10V
	Current type( Note 2)	DC4-20mA，DC0-20mA(Sink type)
Input impedance	Voltage pattern	10kΩ
	Current pattern	250Ω
Output signal Note 4)	Analog output	DC1-5V(Output impedance: Approx. 1 kΩ) Output accuracy ± 6% F.S. or less
Linearity		±1%以下(F.S.)
Hysteresis		0.5%以下(F.S.)
Repeatability		±0.5%以下(F.S.)
Sensitivity		0.2%以下(F.S.)
Temperature characteristics		±0.12%以下(F.S.)/℃
Ambient and fluid temperature		0-50℃((No condensation)
Enclosure		IP65
Type of connection		Built-in quick change connector
Connection size	monomer	Metric size	1,2,3：∅4
		Imperial size	0.2.3：∅5/32"
	Packaged type	Metric size	1,3：06，2：∅4
		Imperial size	1,3：∅1/4"，2：∅5/32"
Quality quick note 1)		Less than 100g (without options)

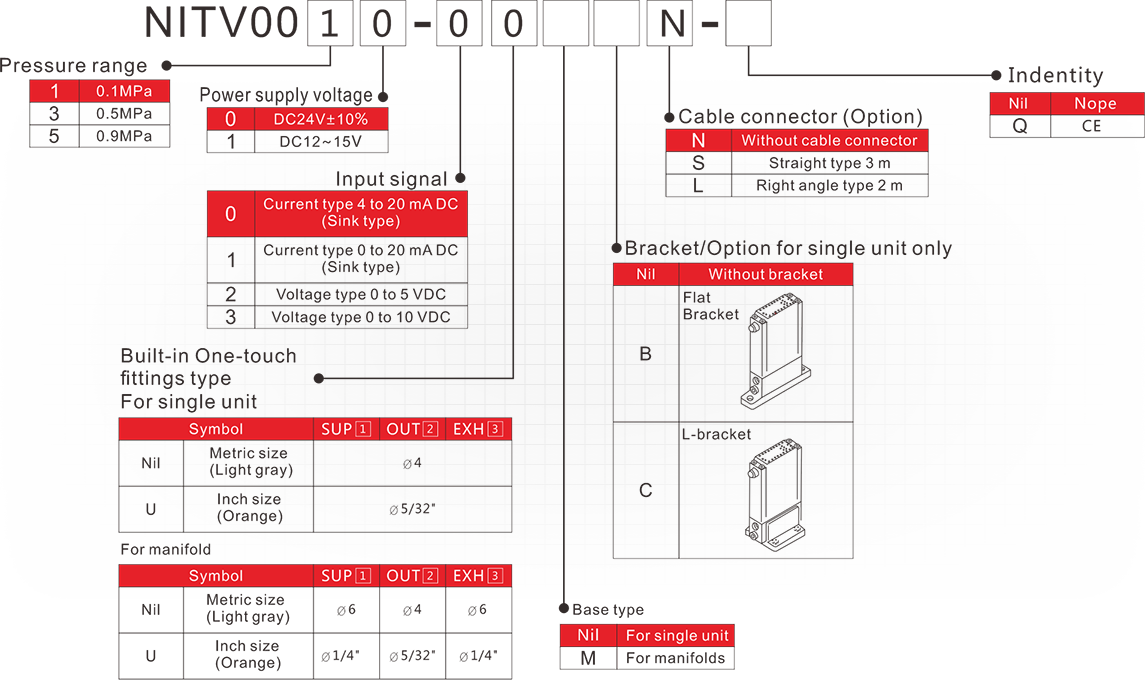

MODEL INDICATION

Standard Specifications

Pneumatic components source manufacturers

NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.

Pneumatic Pressure Regulator Core Part

And the after-sale service is our strength, our entire technical team and customers will carry out the deepest applying cooperation. We quickly respond and settle the problems that are encountered by the customers, which has been recognized by them. In the meantime, our company also promises to customers that if there is problem about product the technicians will arrive within 48 hours.

lectric Pneumatic Regulator Core Part

Pneumatic Pressure Regulator

PRODUCT ADVANTAGE

NNT pneumatic component. We have the mature craft and the production line, the corrosion resistant and robust design along with a wide range of options makes it ideal for OEM.

E/P regulator, Air gripper, Precision regulator, Digital pressure switch, Flow switch, Air cylinder else.

Our company puts most of energy in product quality inspection and has imported testing equipment to ensure the high quality, so that we can provide a guarantee ofour product and then customers can use it trustingly.
Multiple types of pneumatic components.

Support customization to meet one-stop procurement needs

The NNT electrical proportional valve adjusts the cross-sectional area of the valve core based on the size of the control signal. In order to achieve the process goals and requirements of adjusting the pressure level. The electrical proportional valve controls the gas pressure through an electrical signal, which can achieve continuous and stepless adjustment of the gas pressure. It can achieve remote control and program control, and is particularly suitable for situations where continuous or stepless adjustment of the gas pressure is required.

Thin proportional valve NITV0000-NNT

Our pneumatic products have been widely used in all walks of life.

Applications

In order to satisfy customers' tighter requirements to pneumatic components, we also cooperate with RWTH Aachen University to develop full range of NNT pneumatic control components with most sophisticated technology and technics.

We have the most advanced production equipment and testing equipment in industry ,because we always attach great importance to the pneumatic product quality.

In addition, strict management and control are always carried out in each step of quality management in order to ensure every ex-factory product of NNT can meet the highest quality standards.
